Laser Aided Additive Manufacturing (LAAM)

laser-aided-additive-manufacturing

Interested to Know More?

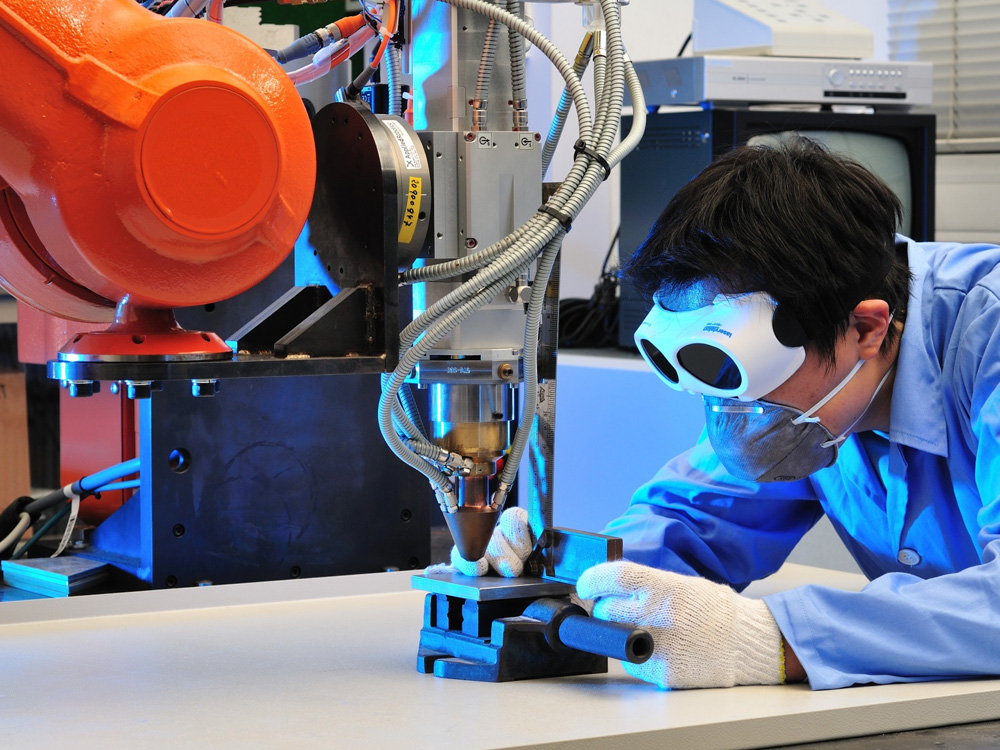

High power laser system for welding and additive manufacturing; Flexible 3D Additive Manufacturing process where the print head is mounted on a robot that allows for free-form metal powder printing of over a large footprint (>1m).


EQUIPMENT SPECIFICATIONS
  • Model: N/A (Self-Developed)
  • Laser power 6 kW, 6-axis robot arm for free form 3D printing
  • Max size of component: 2m x 1.5m x 1.5 m
  • Resolution: 0.6 mm
  • Accuracy: ± 0.1 mm for 10 mm x 10 mm square shape


CAPABILITIES / APPLICATIONS
High power laser system for welding and additive manufacturing; Full 5-axis hybrid system with additive manufacturing & milling functions for fabrication of 3D components, capable for additive manufacturing and machining of freeform 3D parts in one machine for components over a large footprint (>1m).


LOCATION
V2-W07, SIMTech Valley Block (Level 2)
73 Nanyang Dr, Singapore 637662
