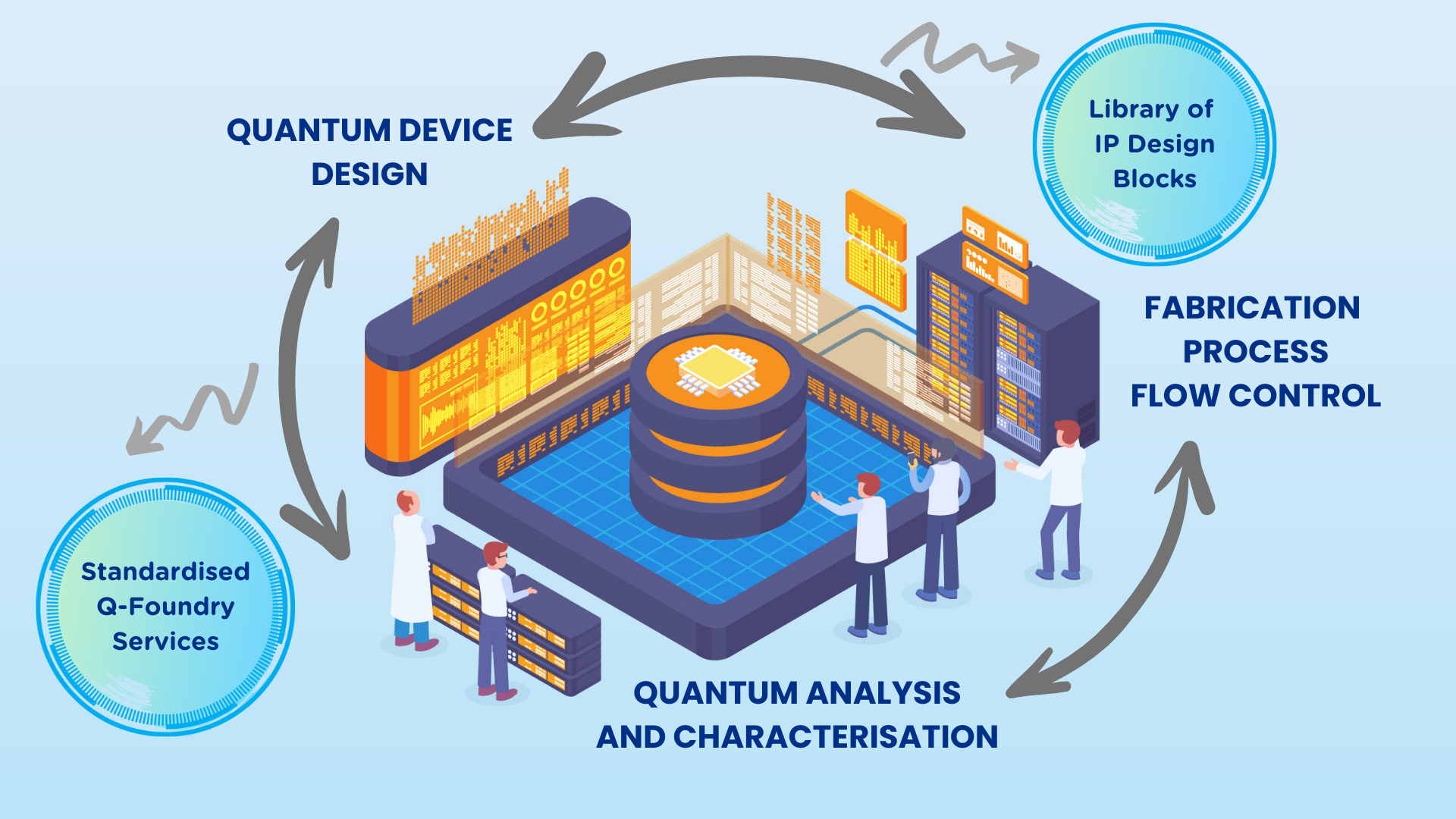

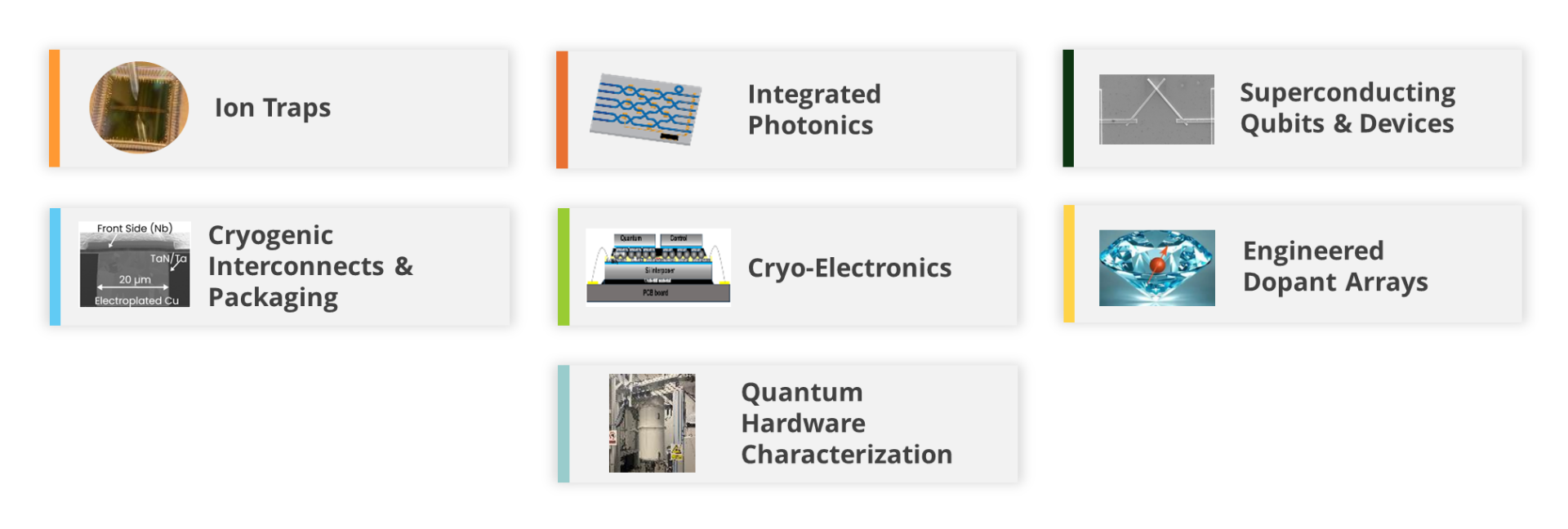

NQFF infographic
NQFF LOGO_Feb 2024

The National Quantum Federated Foundry (NQFF) is a national-level platform in Singapore to build capabilities in designing, fabricating, and characterising micro- and nano- devices that are essential for quantum technologies. This research foundry does not own and maintain a cleanroom but access the existing network of cleanrooms in Singapore while augmenting them with new and unique capabilities to develop key recipes important to quantum technologies.

It is incubated at the Institute of Material Research and Engineering (IMRE), while NQFF works closely with the Institute of Microelectronics (IME), both being part of the A*STAR family. In IMRE, NQFF has state-of-the-art design and characterisation facilities to cater to device characterisation. The NQFF team members perform the fabrication of devices at IME as well as in other cleanrooms, such as the Centre for Advanced 2D Materials (CA2DM) and E6NanoFab at the National University of Singapore (NUS).

At present, the mandate of the NQFF is to support the local research needs; hence, NQFF works closely with Principal Investigators from NUS and NTU. The foundry has developed fabrication processes on the following four domains of quantum technology platforms:

  1. SUPERCONDUCTING QUBITS

  2. INTEGRATED ION TRAPS

  3. PHOTONIC INTEGRATED CIRCUITS

  4. SITE-SPECIFIC DONOR ON SILICON (early stage)

We also design, fabricate and characterise some of the commonly used enabling devices for material qubit platforms namely Cryogenic electronics.

Among the three pillars of quantum technologies computing, communication and sensing, the NQFF currently focuses on the first pillar.  The following gives a basic introduction to a full-stack quantum computer to understand the component requirements.

Introduction to Full-Stack Quantum Computer
Currently, there are many choices to realise a unit of quantum information called quantum bit or qubit. These platforms can be broadly classified as material-based qubits and isolated particle-based qubits. Some examples of material-based qubits are superconducting circuits, silicon-donor, quantum dots etc., all requiring sophisticated micro and nano fabrication to build the qubits. On the contrary, isolated particle-based qubits like atoms, molecules, or photons generally require a specialised ultra-high vacuum and or laser to make the qubits.

The foundry supports both types of full-stack machines by manufacturing components that require micro/nano fabrications. In the following, we show which components we develop and where in the full stack they are used. We start with a generic full-stack block diagram:
NQFF Full Stack Quantum Computer



Superconducting Qubits

The stack of our discussion is the physics package. Based on the platform this package changes and hence we start with the superconducting qubits. A simple block diagram of the QC circuit platform is as follows.

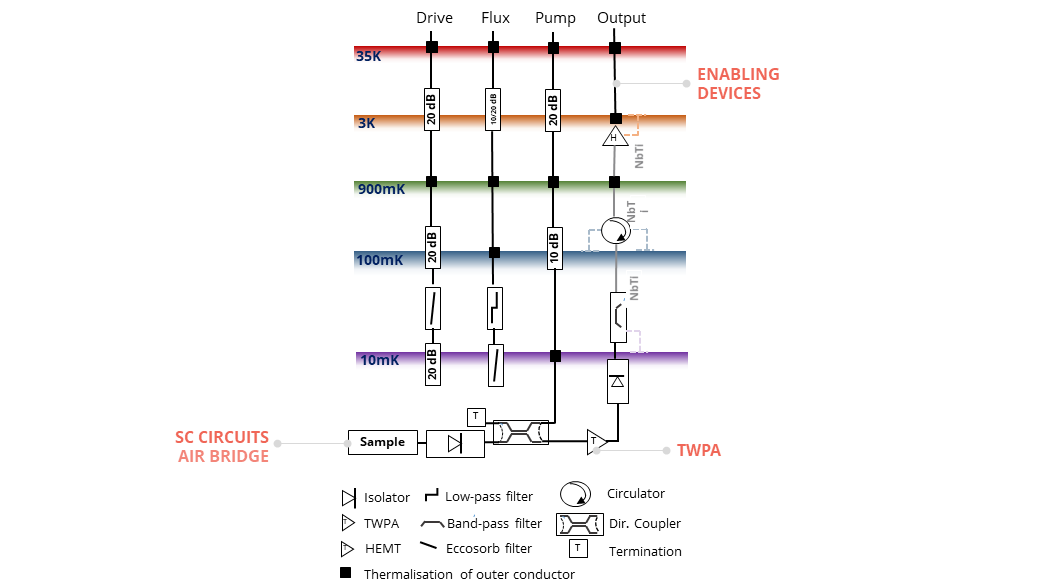

SC circuit platform block diagram: there are 4 electrical connections
Superconducting qubit and cryogenic devices

SC Circuits

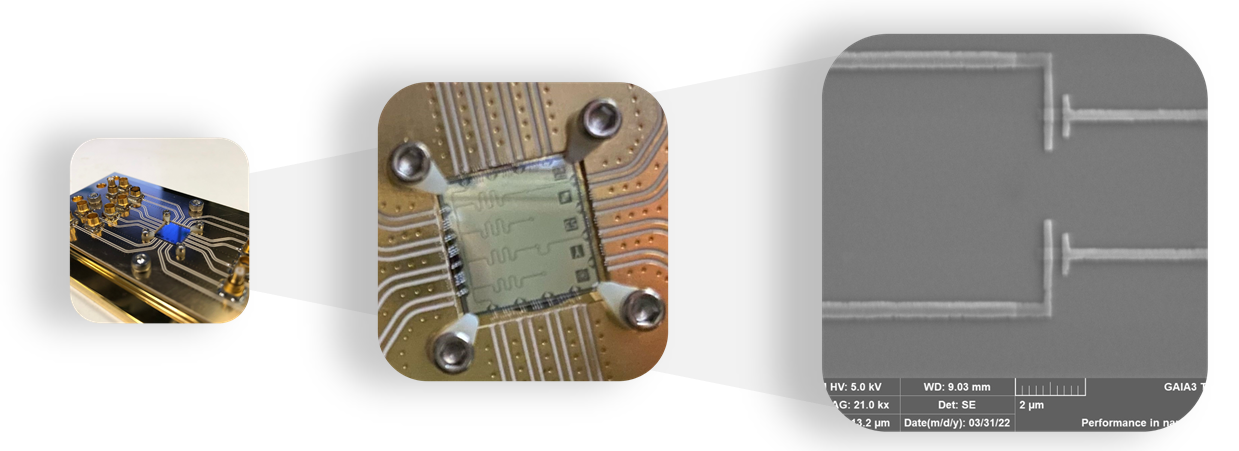

This is the quantum processor and it resides at about 10s mK temperature such that aluminium is in superconducting state. The circuits consists of a capacitor and a Josephson Junction (JJ) or also called tunneling junction.
Air Bridge

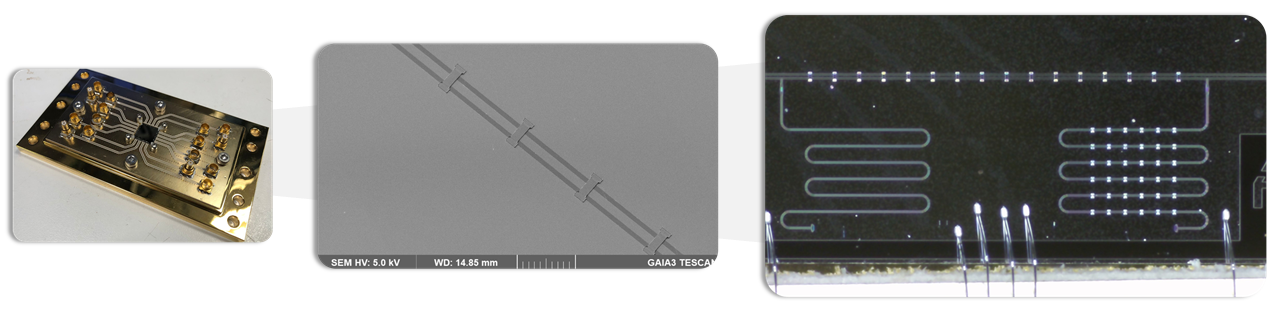

To avoid microwave losses, we have developed air-bridges that can be fabricated using fewer steps and with high reliability integrated into our SC circuits.

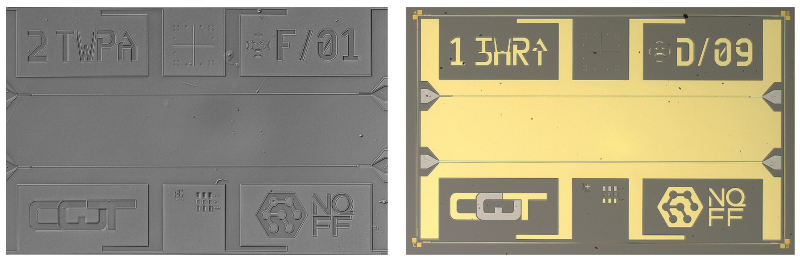

Travelling Wave Parametric Amplifier (TWPA)
TWPA as similar to JJs but are of lower quality and allows parameteric amplification in a series of JJs.
